Puzzle Mega, Design by Studio Italia Design, 2019

Puzzle Mega

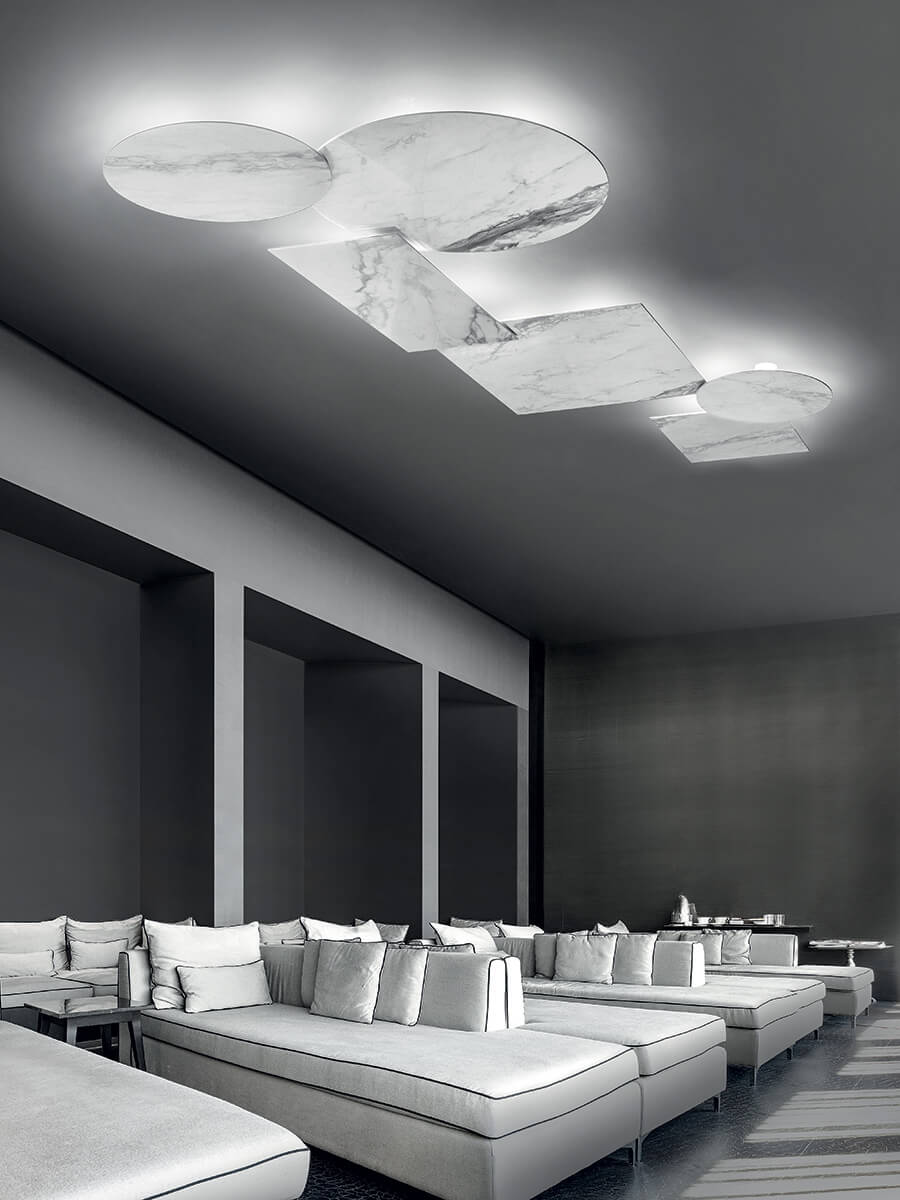

Large geometric figures characterised by essential forms, which almost merge with the interior architecture when off, only to be surprisingly revealed as harmonies of light and shadow when lit. New matte finishes warm up the geometric panels of Puzzle Mega, liquid red,white, taupe and black paints that open new decorative possibilities, playing with harmonies and contrasts of colours and shapes. With Puzzle Mega, light gracefully decorates walls and ceilings.

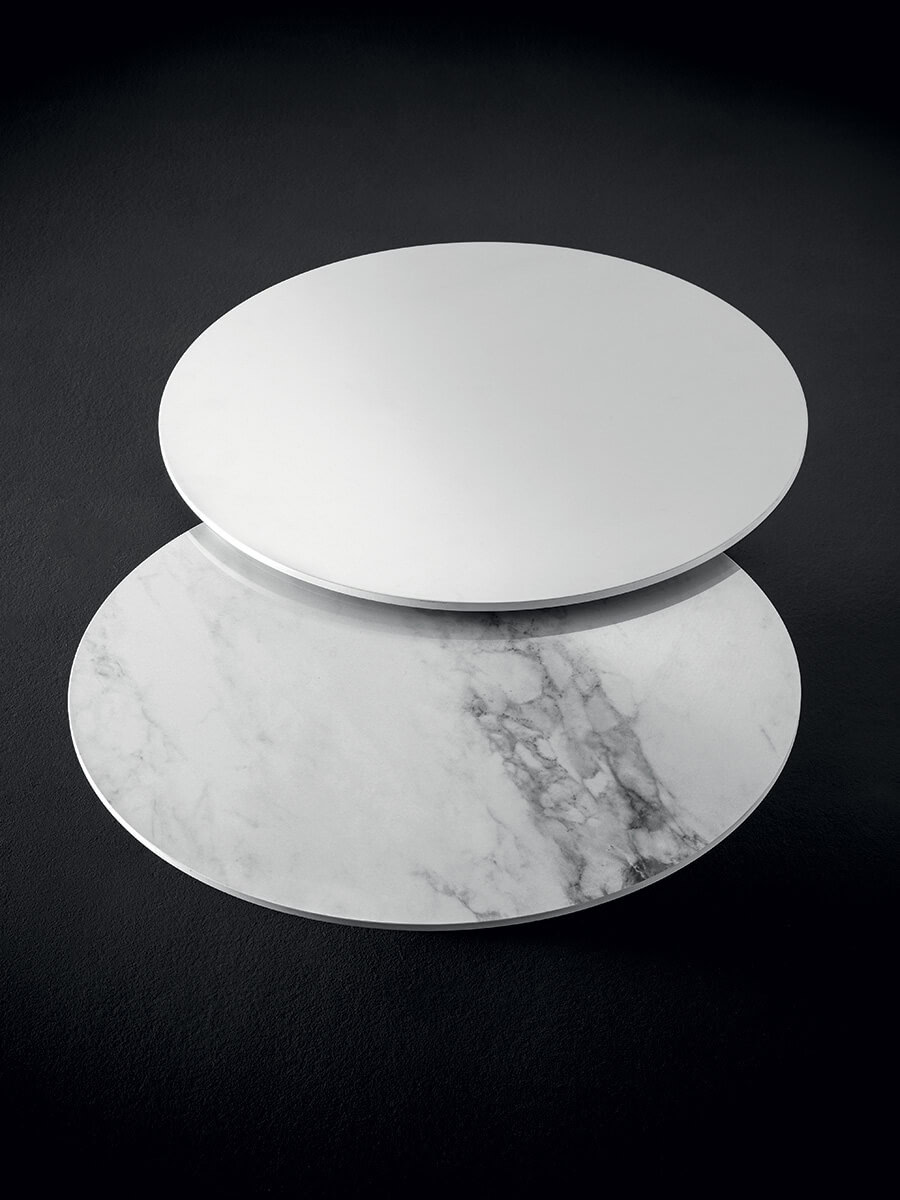

Round or square, the large geometric figures of Puzzle Mega express the beauty of light through a clean design with a surprising effect. An essential, sculptural character infused with suggestion: when off, they blend in with the interior architecture, elegant and discrete; once lit, they paint the walls and ceiling with unexpected harmonies of light and shadow. The two MDF shapes are available in two sizes and four matte finishes: black, white, red, and taupe. While singularly they create a sophisticated light source, in compositions of up to 36 elements Puzzle Mega lamps give life to truly unique and surprising creations.



All Puzzle Mega lamps feature a structure in matte white metal and are fitted with a spacer for the wall or ceiling. The compositions can be developed by overlapping the various lamps using dedicated accessories. The round version is available with diameters 53 and 80 cm, the square version measures either 53 or 80 cm per side. Depending on the size, each lamp houses 3 to 4 LED light sources, each 15W. The light colour temperature can be warmer, 2700K, or cooler, 3000K. The colour rendering index (CRI) of 92 mirrors the true colour of objects without distorting them.

Puzzle Mega round small
Discover the spec sheets
Puzzle Mega round small Light source Structure: Metal Diffuser: MDF Code
LED
↙ 3000 K
↙ 51 W
↙ 5400 lm
↙ 120 V
↙ CRI 92
↙ MacAdam 3–Step
LED included
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte Black – 9005Matte Black – 9005
TaupeTaupe
RedRed
16741 1030U
16741 2030U
16741 3930U
16741 6030U
Puzzle Mega round large
Discover the spec sheets
Puzzle Mega round large Light source Structure: Metal Diffuser: MDF Code
LED
↙ 3000 K
↙ 68 W
↙ 7200 lm
↙ 120 V
↙ CRI 92
↙ MacAdam 3–Step
LED included
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte Black – 9005Matte Black – 9005
TaupeTaupe
RedRed
16744 1030U
16744 2030U
16744 3930U
16744 6030U
Puzzle Mega square small
Discover the spec sheets
Puzzle Mega square small Light source Structure: Metal Diffuser: MDF Code
LED
↙ 3000 K
↙ 51 W
↙ 5400 lm
↙ 120 V
↙ CRI 92
↙ MacAdam 3–Step
LED included
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte Black – 9005Matte Black – 9005
TaupeTaupe
RedRed
16742 1030U
16742 2030U
16742 3930U
16742 6030U
Puzzle Mega square large
Discover the spec sheets
Puzzle Mega square large Light source Structure: Metal Diffuser: MDF Code
LED
↙ 3000 K
↙ 68 W
↙ 7200 lm
↙ 120 V
↙ CRI 92
↙ MacAdam 3–Step
LED included
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte White – 9016Matte White – 9016
Matte Black – 9005Matte Black – 9005
TaupeTaupe
RedRed
16745 1030U
16745 2030U
16745 3930U
16745 6030U
