Chelsie, Design by Patrick Norguet, 2025

Chelsie

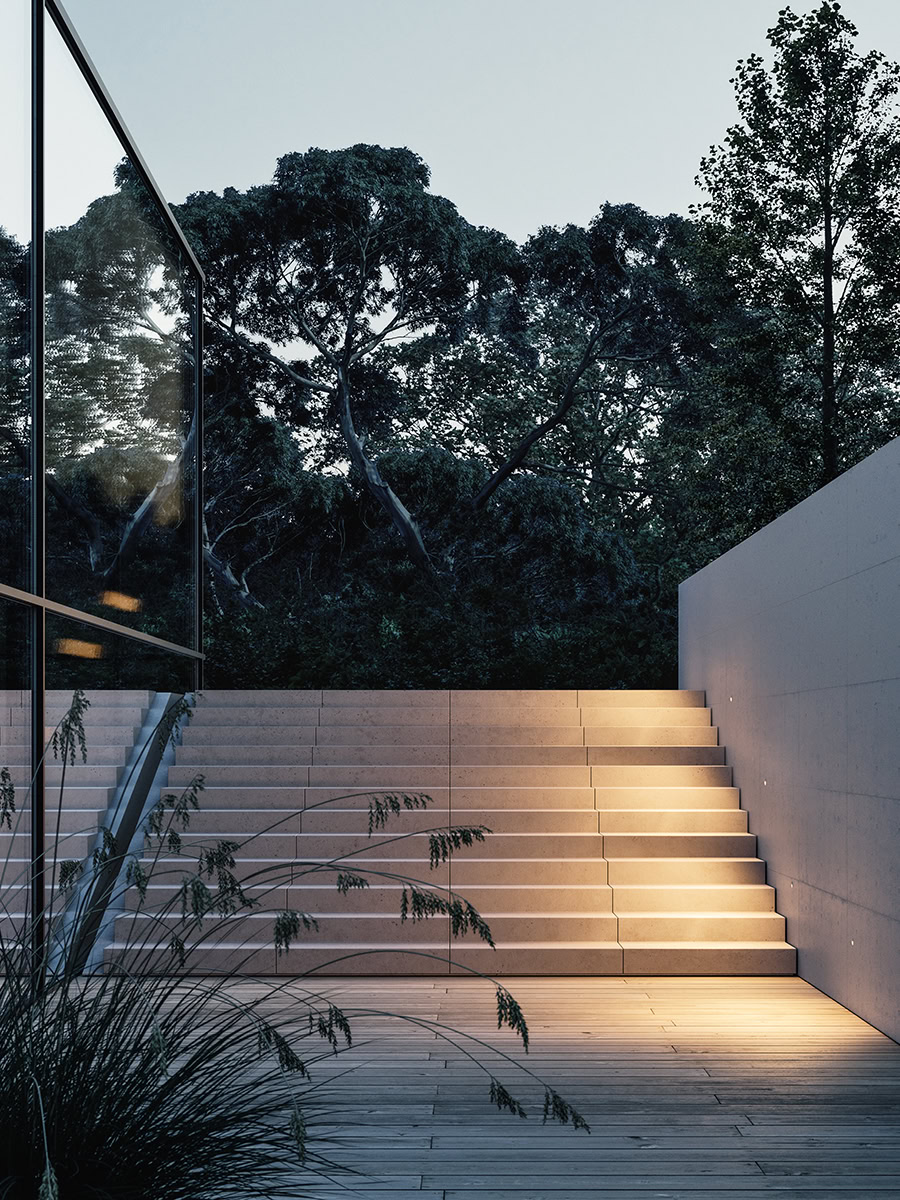

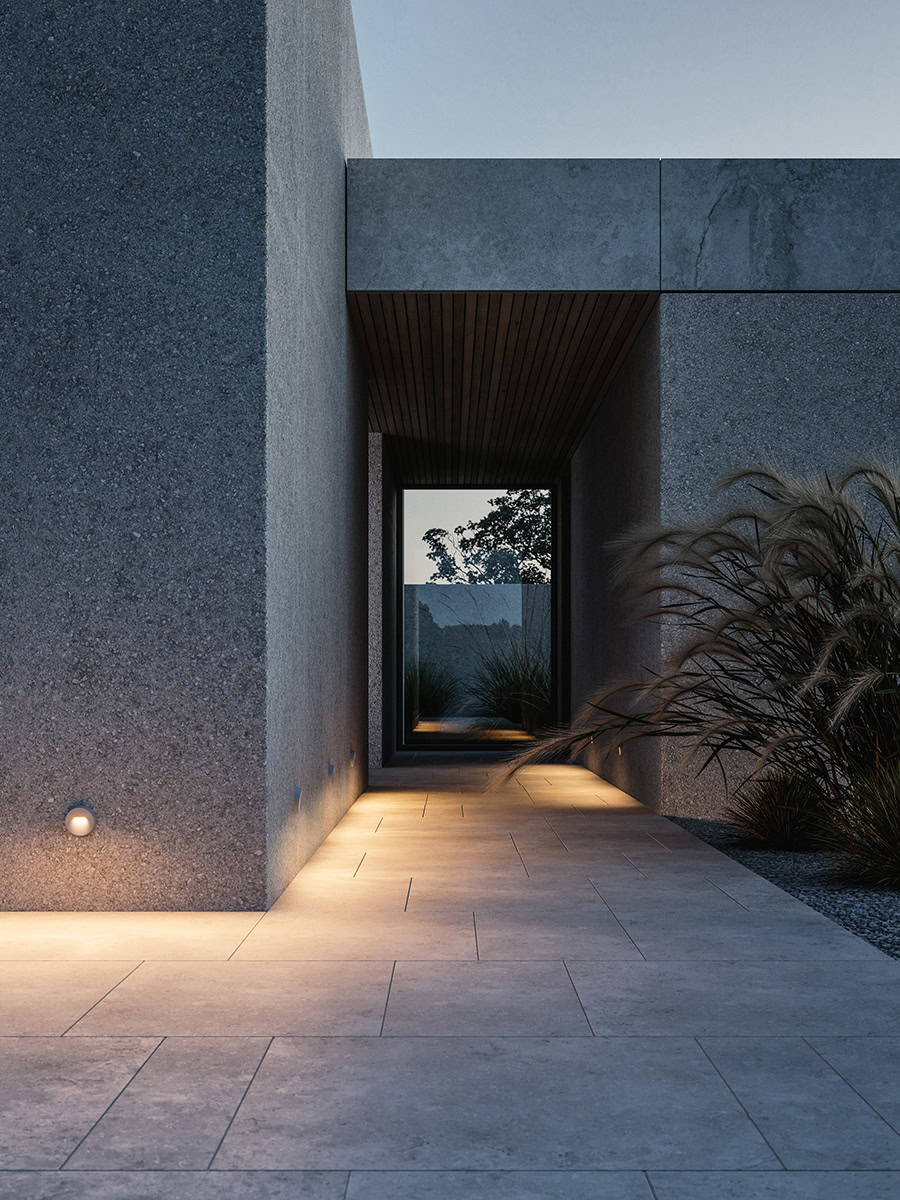

Chelsie is a compact architectural light that defines pathways, characterised by a fluid and minimalist design. Available in two sizes, it functions as a step light in the more compact version and as a floor washer in the Ø140 model, which provides greater visual impact and higher light output.

Designed to create refined lighting effects in outdoor environments, Chelsie provides uniform, enveloping illumination that softens contrasts and enhances the natural perception of space.

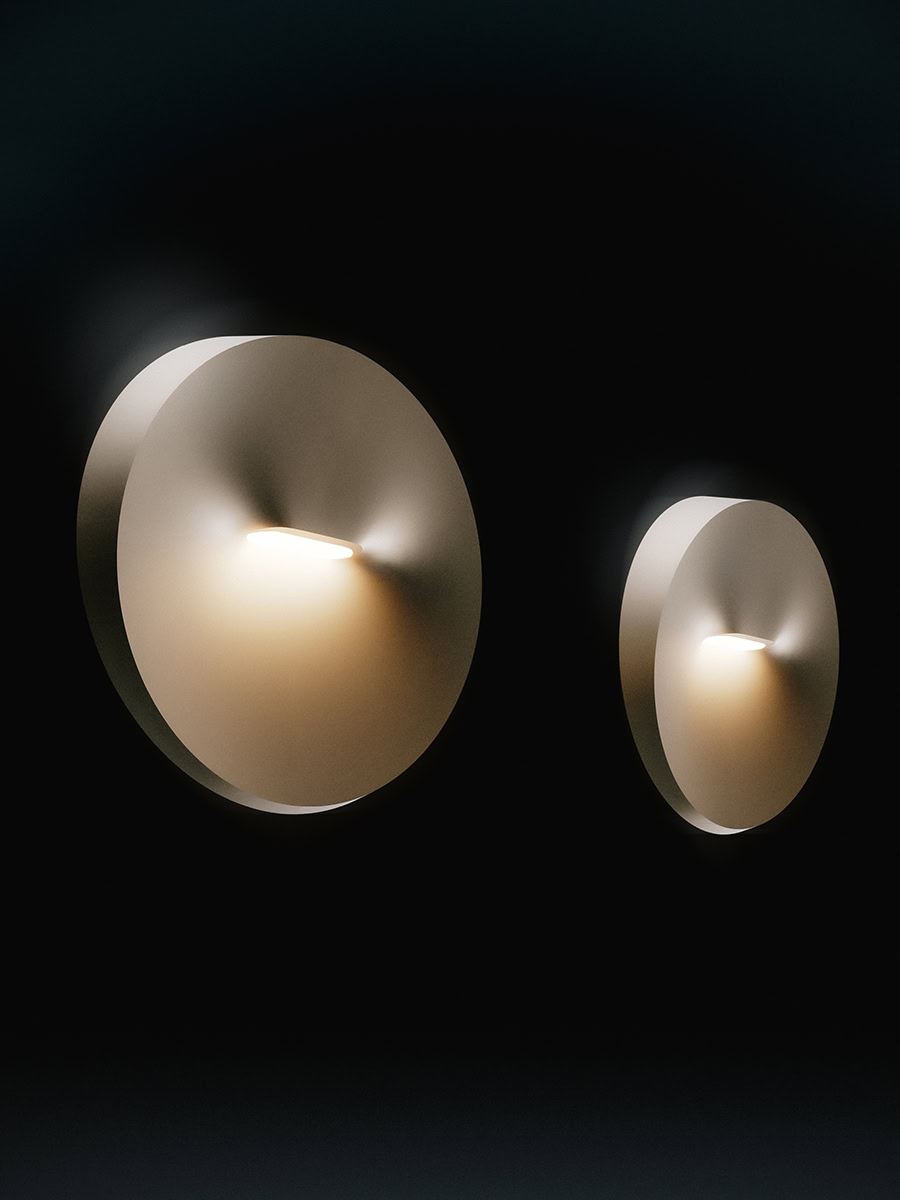

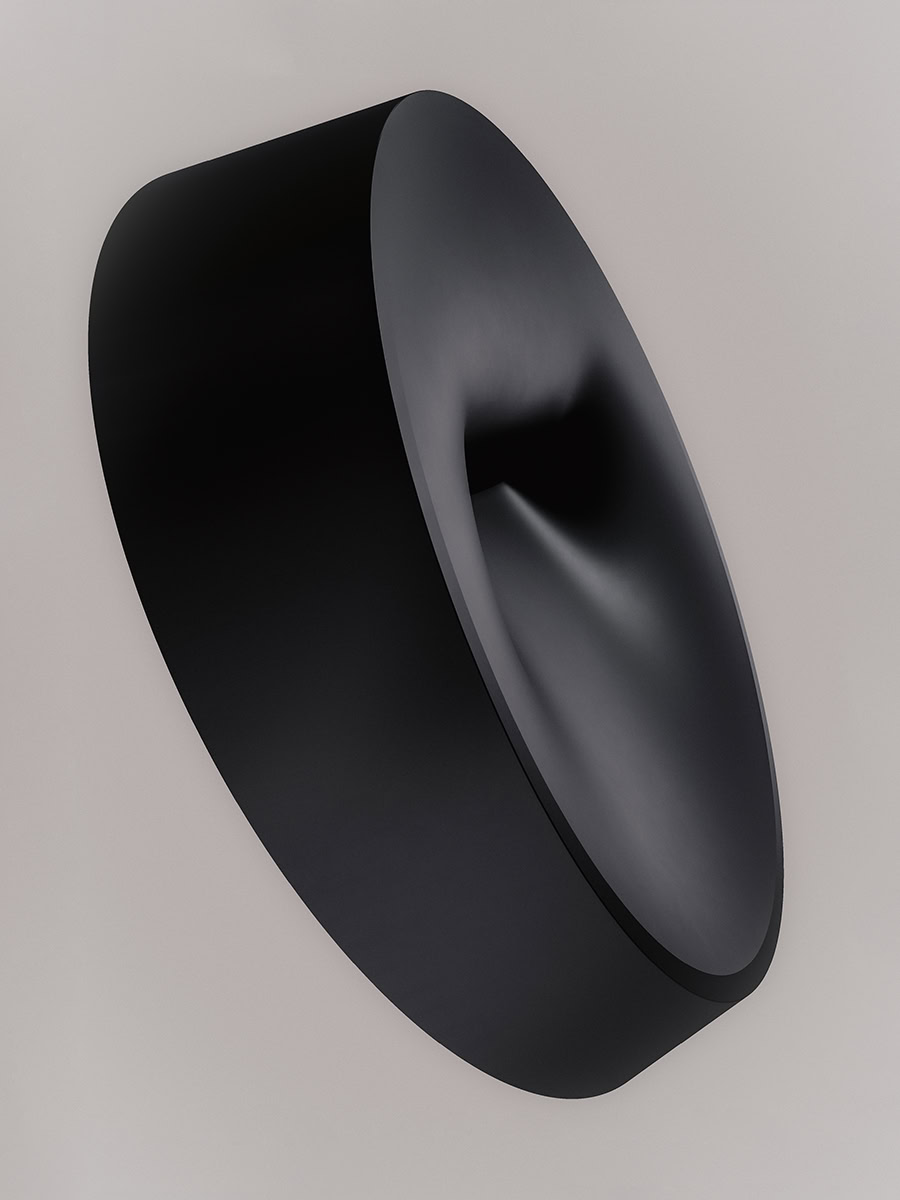

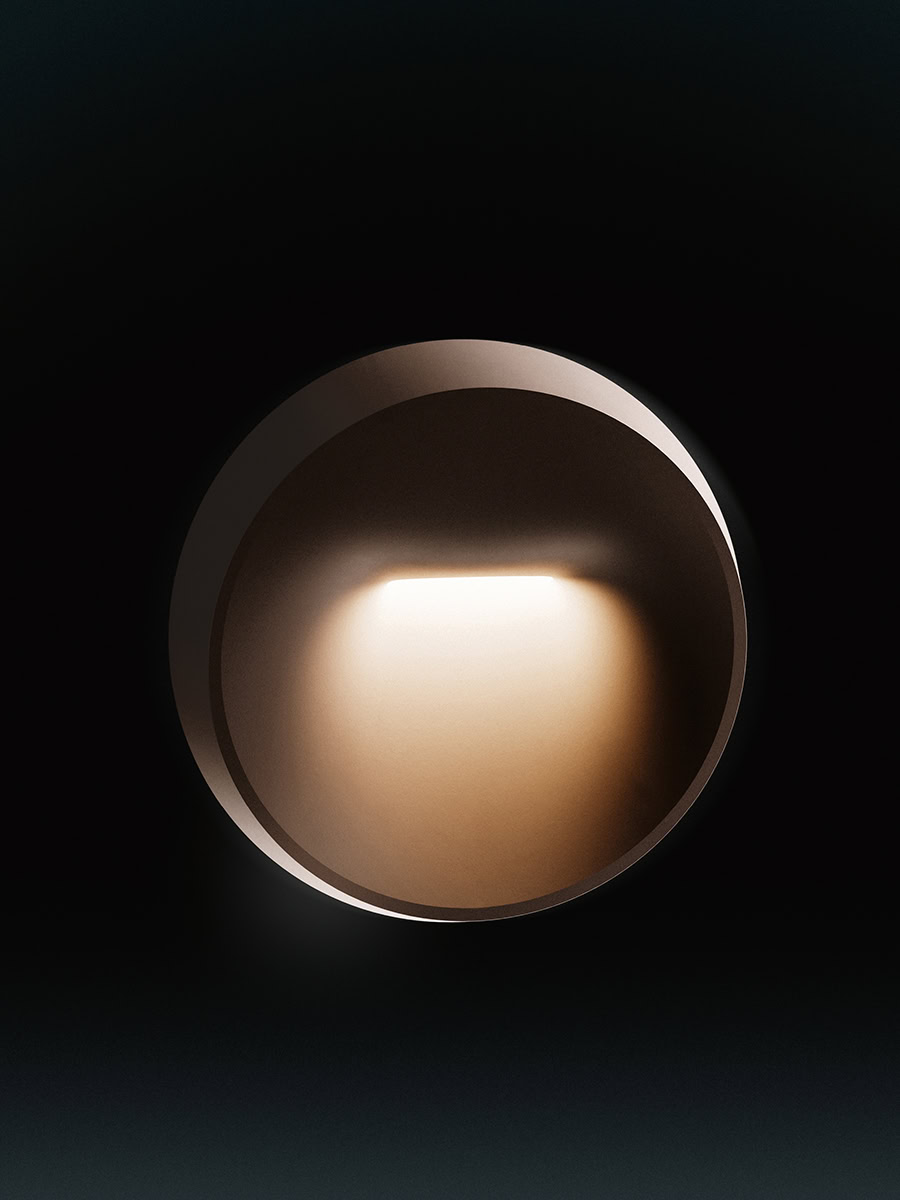

The metal lamp body, sober and with no visible screws, features an open beam with high output that ensures effective, even lighting, while the light source is completely concealed by a gentle recess – the design’s signature graphic feature. Patrick Norguet’s design leaves room for decorative appeal, without sacrificing the technical function and formal clarity that characterise this type of outdoor lamp.



The matt finishes – black, anthracite, grey, natural brown and champagne – make Chelsie a versatile solution for a wide variety of contexts. The step light version is also available in white, expanding its versatility for indoor use and giving designers even greater creative freedom.

Chelsie 140
Discover the spec sheets
Chelsie 140 Light source Structure Code 2200 K Code 2700 K Code 3000 K
24V
LED 2,3 W
CRI ≥ 90
MacAdam < 3–Step

Cable lenght 0,5 m
Rubber cable
Section 2x 0,75 mm2
or
Built-in driver
LED 2 W
CRI ≥ 90
MacAdam < 3–Step

Cable lenght 0,5 m
Rubber cable
Section 3x 1 mm2
ChelsieChelsie
ChelsieChelsie
Matte Black – 9005Matte Black – 9005
Matte Black – 9005Matte Black – 9005
Matte AnthraciteMatte Anthracite
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
Natural BrownNatural Brown
801023222
801033222
801022022
801032022
801024422
801034422
801024522
801034522
801026922
801036922
801023227
801033227
801022027
801032027
801024427
801034427
801024527
801034527
801026927
801036927
801023230
801033230
801022030
801032030
801024430
801034430
801024530
801034530
801026930
801036930
CE EU-Energetic-Label EAC PWM 24V III Classe Triac 220-240V Class-I
Energy efficiency class
Download
▼ Spec sheets ▼ Assembly instructions ▼ Photometric data ▼ 2D drawing
▼ 3D model
Chelsie 40
Discover the spec sheets
Chelsie 40 Light source Structure Code 2200 K Code 2700 K Code 3000 K
24V
LED 1,2 W
CRI ≥ 90
MacAdam < 3–Step

Cable lenght 0,5 m
Rubber cable
Section 2x 0,5 mm2
Matte WhiteMatte White
ChelsieChelsie
Matte Black – 9005Matte Black – 9005
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
801011022
801013222
801012022
801014422
801014522
801016922
801011027
801013227
801012027
801014427
801014527
801016927
801011030
801013230
801012030
801014430
801014530
801016930
CE EU-Energetic-Label EAC PWM 24V III Classe
Energy efficiency class
Download
▼ Spec sheets ▼ Assembly instructions ▼ Photometric data ▼ 2D drawing
▼ 3D model
