Reed, Design by Lodes, 2025

Reed

Reed transforms a simple post into a lighting solution that blends seamlessly into the natural environment, nestled among low vegetation and bushes, creating a visual and emotional narrative that restores light to its leading role as a source of comfort and wellbeing.

Its name reveals its inspiration: a slender, vertical metal stem emerging from ground like a plant, ready to illuminate with quiet elegance, whether alone or in compositions.



The stem can be paired with three organically shaped diffusers – two flattened sphere versions inspired by the delicacy of dandelion flowers, and an elongated one reminiscent of the lightness of slender stalks – designed to blend naturally into the landscape and compose evocative lighting scenes. Each configuration interacts with the surrounding environment, creating atmospheres where light, shadows, and shapes merge to convey the impression of a natural extension of the vegetation itself.



Available in three stem heights and four finishes – anthracite, natural brown, natural green, and champagne – Reed is designed for direct ground installation. A portion of the stem, buried and hidden after installation, allows it to be freely tilted to camouflage itself within the greenery and gently diffuse light, enhancing textures, volumes, and details with great delicacy.



Reed is the ideal solution for outdoor settings that foster a strong connection between nature, light, and architecture. In residential areas and green spaces of hotels and commercial buildings, it enhances paths, garden edges, and terraces with a discreet yet decorative presence that promotes an aesthetic balance of sensory emotion and visual wellbeing. It also adds a sober and elegant touch to parks and courtyards, where it harmoniously integrates among shrubs and bushes, becoming part of the landscape itself to create lighting scenes in harmony with the vegetation and architectural context.

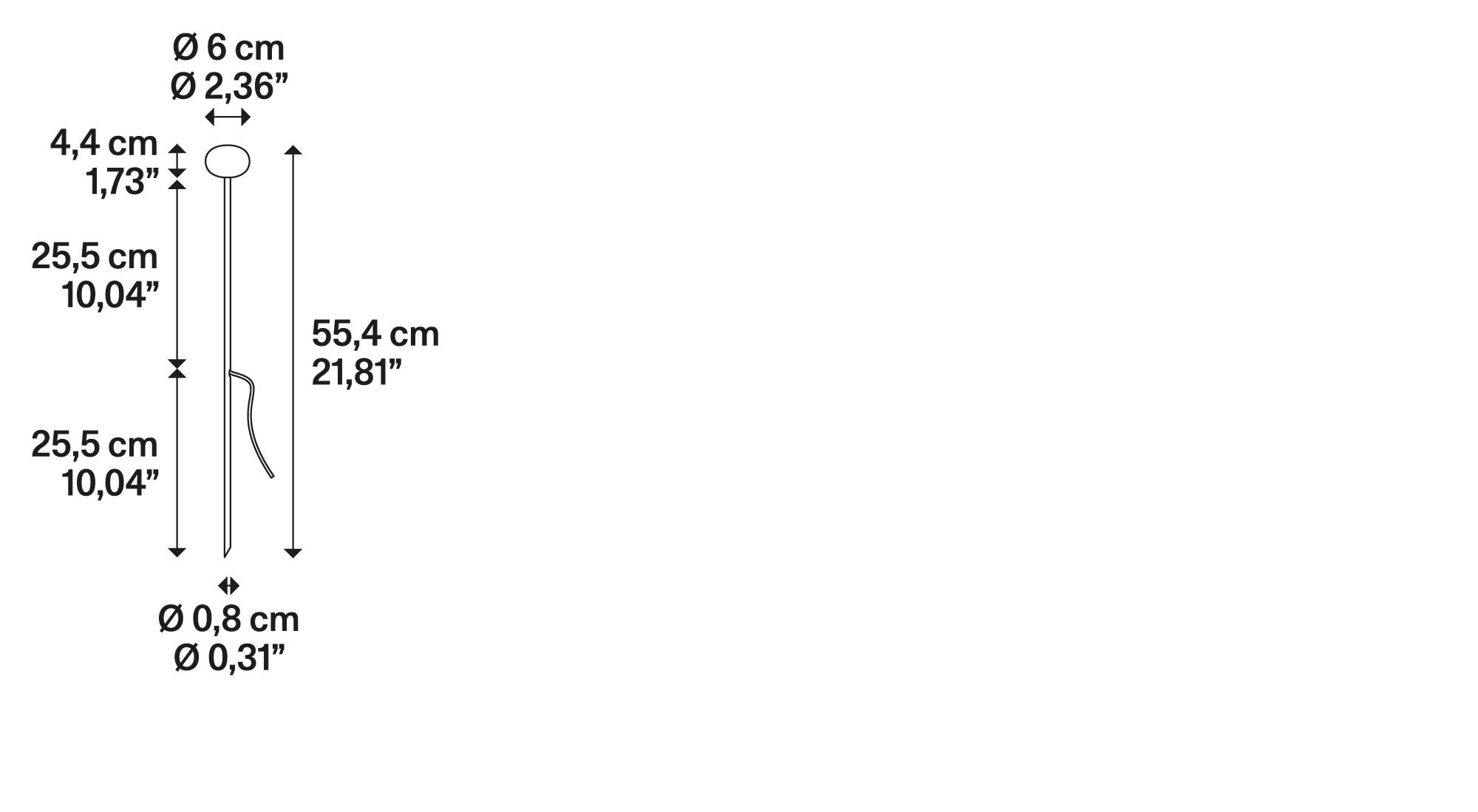

Reed 30 Oval 60
Discover the spec sheets
Reed 30 Oval 60 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806114422BU
806114522BU
806116922BU
806117022BU
806114427BU
806114527BU
806116927BU
806117027BU
806114430BU
806114530BU
806116930BU
806117030BU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model
Reed 30 Oval 90
Discover the spec sheets
Reed 30 Oval 90 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806114422CU
806114522CU
806116922CU
806117022CU
806114427CU
806114527CU
806116927CU
806117027CU
806114430CU
806114530CU
806116930CU
806117030CU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model
Reed 30 Pod
Discover the spec sheets
Reed 30 Pod Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806114422AU
806114522AU
806116922AU
806117022AU
806114427AU
806114527AU
806116927AU
806117027AU
806114430AU
806114530AU
806116930AU
806117030AU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model

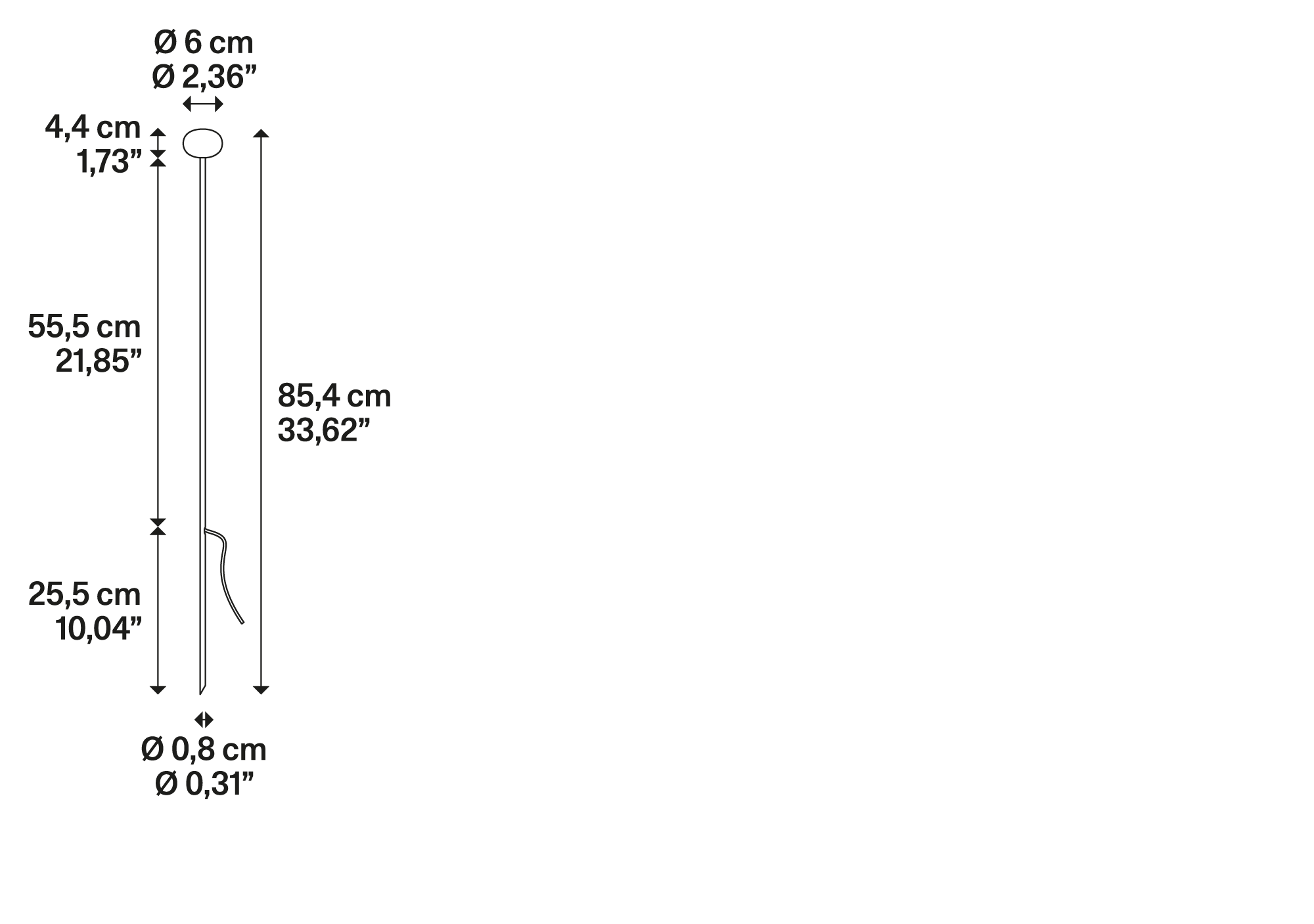

Reed 60 Oval 60
Discover the spec sheets
Reed 60 Oval 60 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806124422BU
806124522BU
806126922BU
806127022BU
806124427BU
806124527BU
806126927BU
806127027BU
806124430BU
806124530BU
806126930BU
806127030BU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model

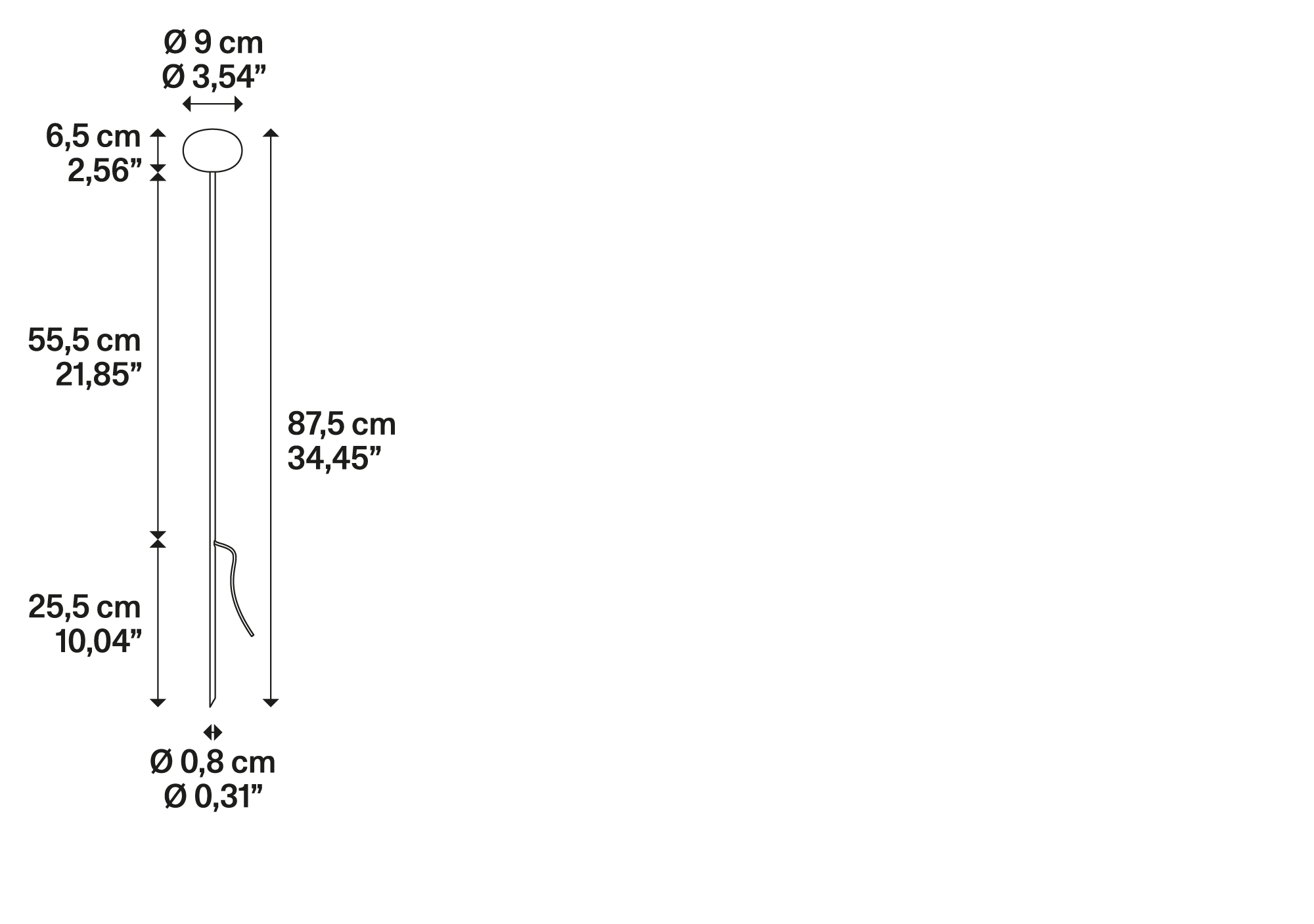

Reed 60 Oval 90
Discover the spec sheets
Reed 60 Oval 90 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806124422CU
806124522CU
806126922CU
806127022CU
806124427CU
806124527CU
806126927CU
806127027CU
806124430CU
806124530CU
806126930CU
806127030CU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model

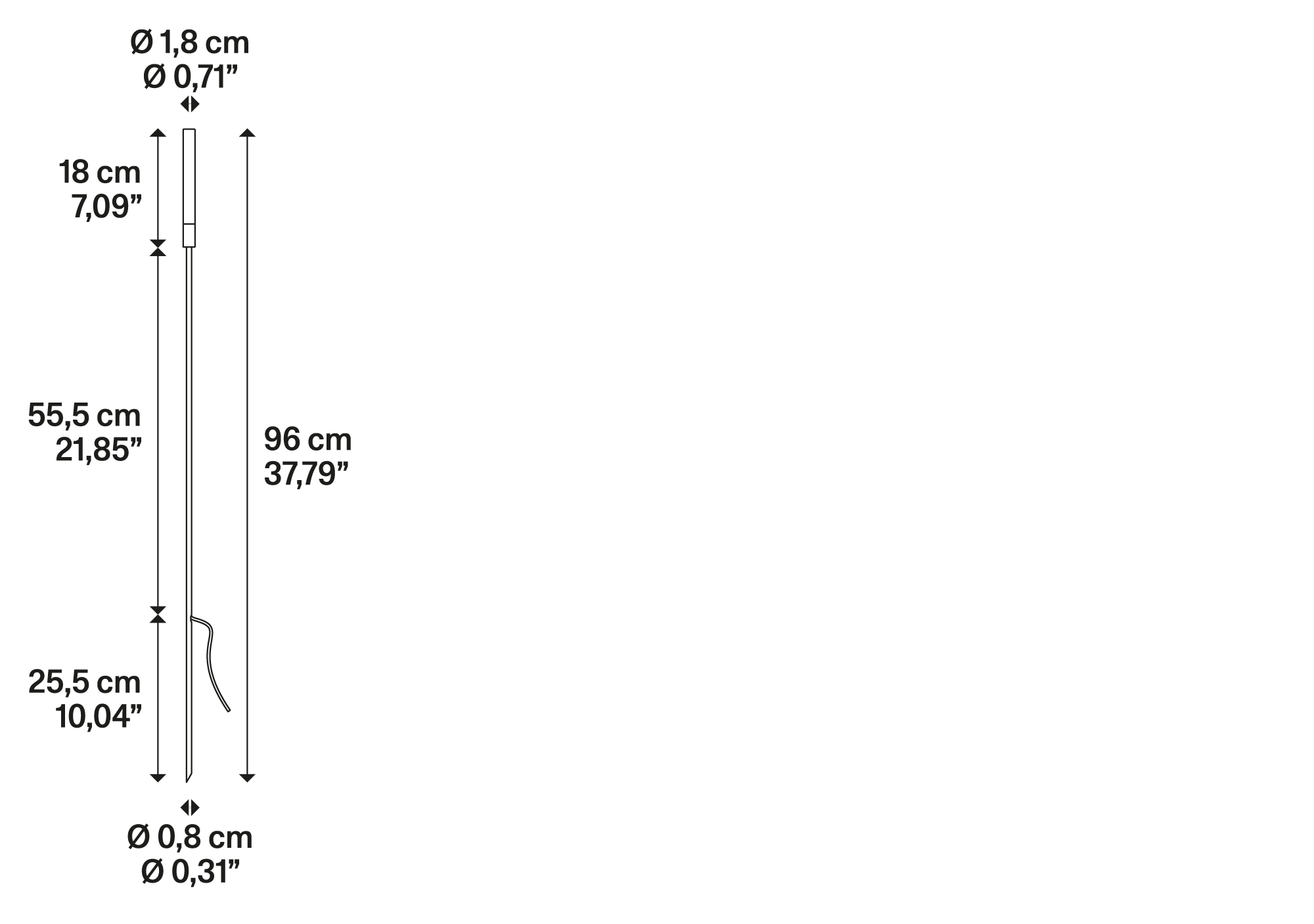

Reed 60 Pod
Discover the spec sheets
Reed 60 Pod Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806124422AU
806124522AU
806126922AU
806127022AU
806124427AU
806124527AU
806126927AU
806127027AU
806124430AU
806124530AU
806126930AU
806127030AU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model

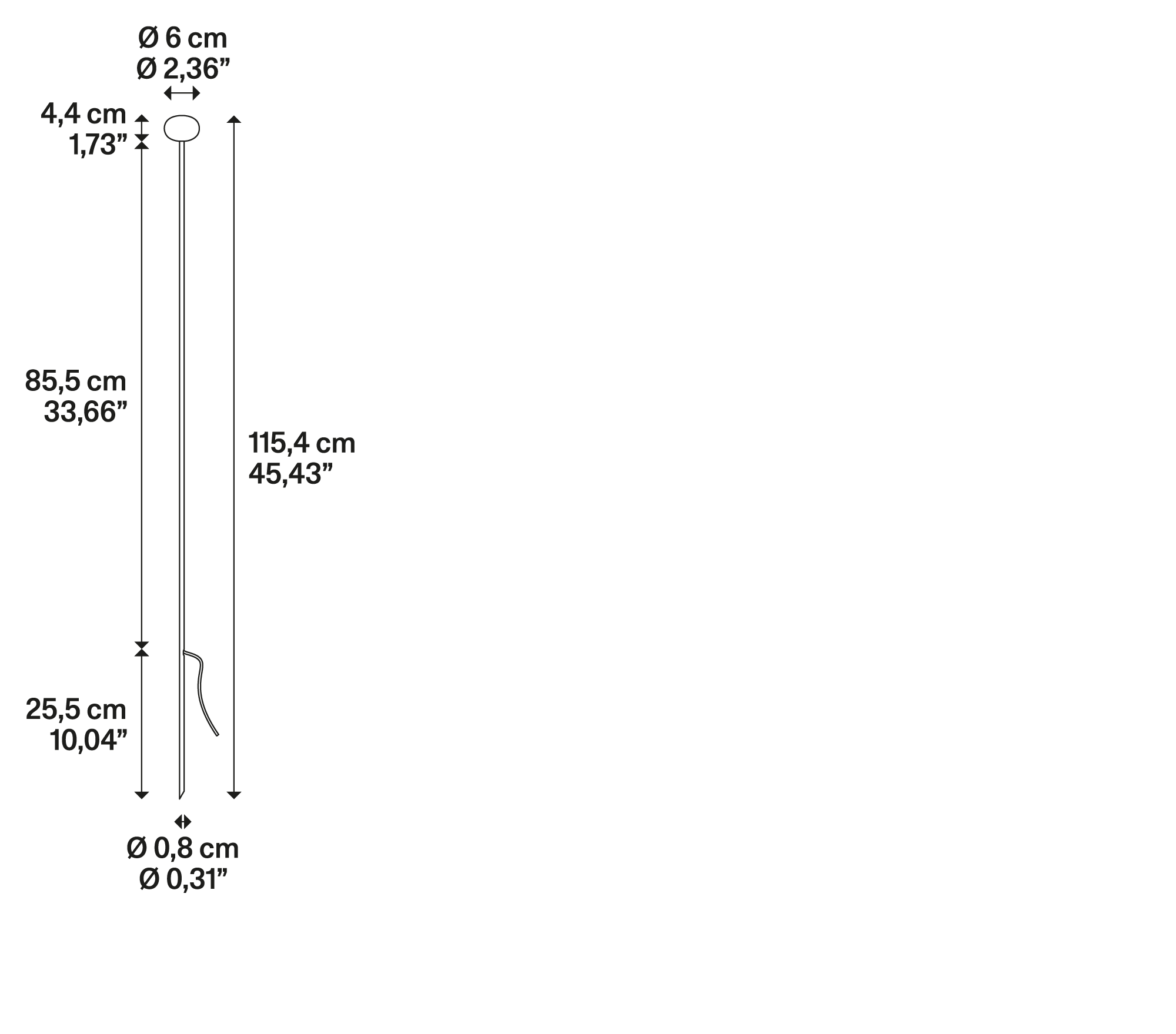

Reed 90 Oval 60
Discover the spec sheets
Reed 90 Oval 60 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806134422BU
806134522BU
806136922BU
806137022BU
806134427BU
806134527BU
806136927BU
806137027BU
806134430BU
806134530BU
806136930BU
806137030BU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model

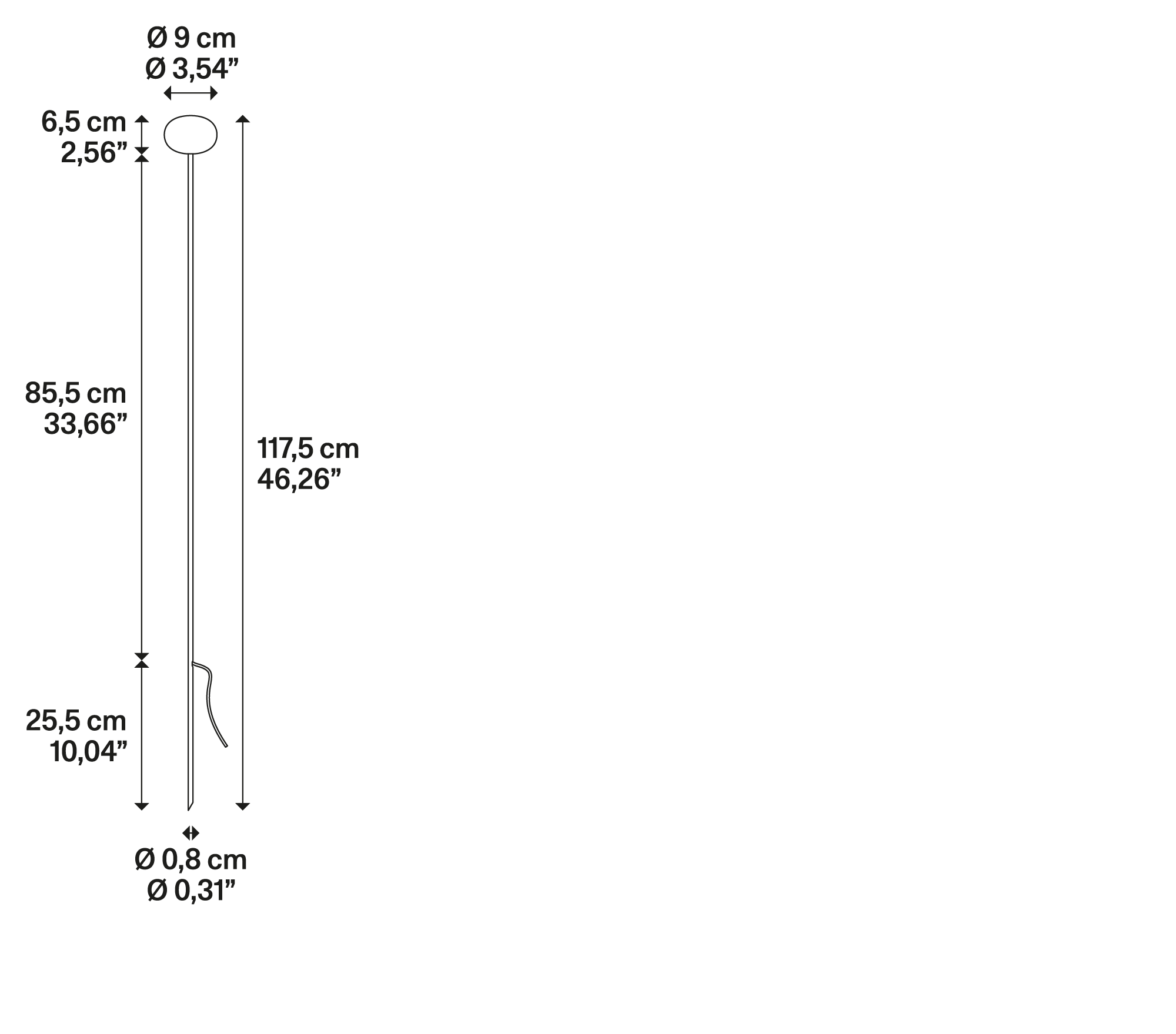

Reed 90 Oval 90
Discover the spec sheets
Reed 90 Oval 90 Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
806134422CU
806134522CU
806136922CU
806137022CU
806134427CU
806134527CU
806136927CU
806137027CU
806134430CU
806134530CU
806136930CU
806137030CU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model
Reed 90 Pod
Discover the spec sheets
Reed 90 Pod Light source Structure Code 2200 K Code 2700 K Code 3000 K
LED
0,3 W
CRI ≥ 90
MacAdam < 3–Step
Cable length 1,5 m Rubber cable
Section 2× AWG 20
Matte AnthraciteMatte Anthracite
Matte ChampagneMatte Champagne
Natural BrownNatural Brown
ReedReed
8061344422AU
806134522AU
806136922AU
806137022AU
806134427AU
806134527AU
806136927AU
806137027AU
806134430AU
806134530AU
806136930AU
806137030AU
IP67 IK08 Wet Location ETL EU-Energetic-Label EAC PWM 24V III Classe
Download
▼ Spec sheets ▼ 2D drawing
▼ 3D model
See all options
